[Unity] LINE CHART 그래프 만들기 (2) 그래프에 라벨 숫자 넣기

숫자 표시하기



UI작업

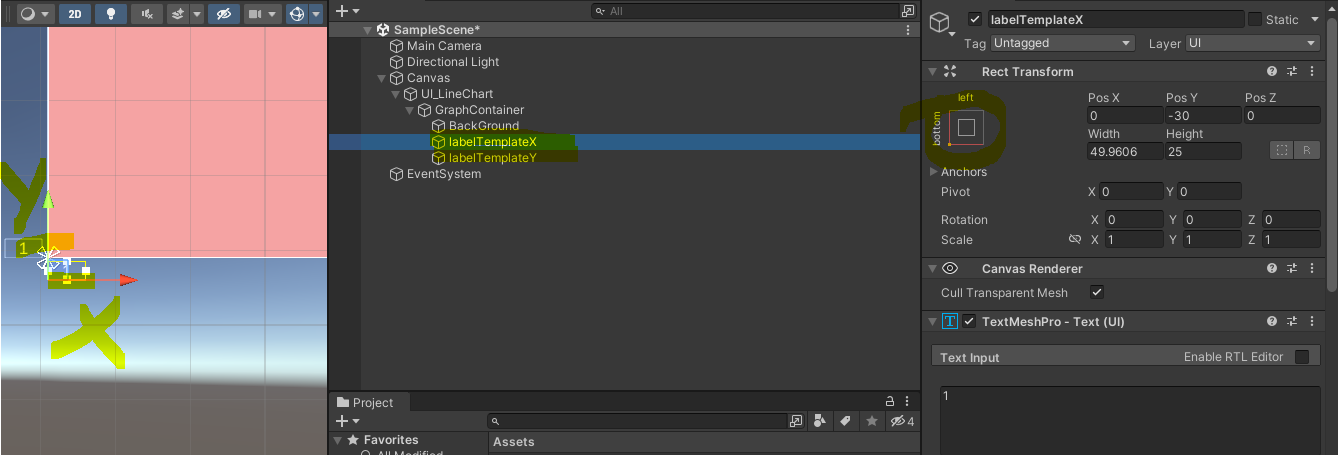

GraphContainer에 x좌표와 y좌표의 값을 나타낼 때 사용할 Text박스를 만든다. (TMP로 만듦 상관없음.)

만들어 놓은 labelTemplateX, labelTemplateY는 상단 체크박스를 통해 active false로 만들어 준다.

소스코드

using System.Collections.Generic;
using TMPro;
using UnityEngine;
using UnityEngine.UI;

public class UI_WindowGraph : MonoBehaviour
{
    [SerializeField]
    private Sprite circleSprite;

    private RectTransform graphContainer;
    private RectTransform labelTemplateX;
    private RectTransform labelTemplateY;

    private void Awake()
    {
        graphContainer = transform.Find("graphContainer").GetComponent<RectTransform>();
        labelTemplateX = graphContainer.Find("labelTemplateX").GetComponent<RectTransform>();
        labelTemplateY = graphContainer.Find("labelTemplateY").GetComponent<RectTransform>();
        List<int> valueList = new List<int>() { 5, 10, 98, 56, 45, 30, 22, 17, 15, 13, 17, 25, 37, 40, 36, 33 };
        ShowGraph(valueList);
    }

    private GameObject CreateCircle(Vector2 anchoredPosition)
    {
        GameObject gameObject = new GameObject("circle", typeof(Image));
        gameObject.transform.SetParent(graphContainer, false);
        gameObject.GetComponent<Image>().sprite = circleSprite;
        RectTransform rectTransform  = gameObject.GetComponent<RectTransform>();
        rectTransform.anchoredPosition = anchoredPosition;
        rectTransform.sizeDelta = new Vector2(11, 11);
        rectTransform.anchorMin = new Vector2(0, 0);
        rectTransform.anchorMax = new Vector2(0, 0);

        return gameObject;
    }

    void ShowGraph(List<int> valueList)
    {
        float graphHeight = graphContainer.sizeDelta.y;
        float yMaimum = 100f;
        float xSize = 50f;

        GameObject lastCircleGameObject = null;
        for (int i = 0; i < valueList.Count; i++)
        {
            float xPostion = xSize + i * xSize;
            float yPosition = (valueList[i] / yMaimum) * graphHeight;

            GameObject circleGameObject = CreateCircle(new Vector2(xPostion, yPosition));

            if(lastCircleGameObject != null)
            {
                CreateDotConnection(lastCircleGameObject.GetComponent<RectTransform>().anchoredPosition, circleGameObject.GetComponent<RectTransform>().anchoredPosition);
            }
            lastCircleGameObject = circleGameObject;

            RectTransform labelX = Instantiate(labelTemplateX);
            labelX.SetParent(graphContainer, false);
            labelX.gameObject.SetActive(true);
            labelX.anchoredPosition = new Vector2(xPostion, -7f);
            labelX.GetComponent<TMP_Text>().text = i.ToString();
        }
        int separatorCount = 10;
        for (int i = 0; i < separatorCount; i++)
        {
            RectTransform labelY = Instantiate(labelTemplateY);
            labelY.SetParent(graphContainer, false);
            labelY.gameObject.SetActive(true);
            float normalizedValue = i * 1f/ separatorCount;
            labelY.anchoredPosition = new Vector2(-7f, normalizedValue * graphHeight);
            labelY.GetComponent<TMP_Text>().text = Mathf.RoundToInt( normalizedValue * yMaimum).ToString();
        }
    }
    void CreateDotConnection(Vector2 dotPositionA, Vector2 dotPositionB)
    {
        GameObject gameObject = new GameObject("dotConnection", typeof (Image));
        gameObject.transform.SetParent(graphContainer, false);
        gameObject.GetComponent<Image>().color = new Color(1, 1, 1, 0.5f);
        RectTransform rectTransform = gameObject.GetComponent<RectTransform>();
        Vector2 dir = (dotPositionB - dotPositionA).normalized;
        float angle = Mathf.Atan2(dir.y, dir.x) * Mathf.Rad2Deg;
        float distance = Vector2.Distance(dotPositionA, dotPositionB);
        rectTransform.anchorMin = new Vector2(0, 0);
        rectTransform.anchorMax = new Vector2(0, 0);
        rectTransform.sizeDelta = new Vector2(distance, 3f);
        rectTransform.anchoredPosition = dotPositionA + (dir) * distance * 0.5f ;
        rectTransform.localEulerAngles = new Vector3(0,0, angle);

    }
}

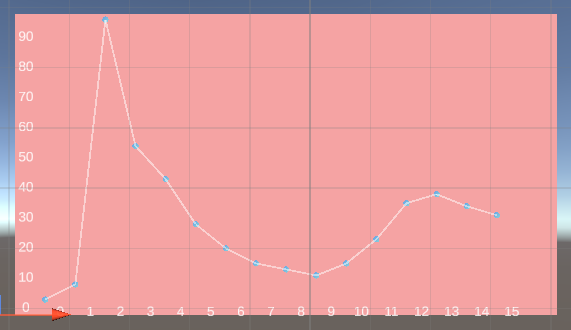

결과



참조 - https://www.youtube.com/watch?v=QmU57Ka9H0E
